OnChip manufactures the smallest RFID OCA tag on the world market utilizing proprietary enhancements.




What is "OnChip"?


The term "OnChip", besides being the name of our company, refers to the technique of fabricating a miniaturized antenna on each chip. Every OnChip Micros G2 Tag comes with the antenna built on the surface of each tag. Unlike most RFiD tag designers and manufacturers whom attach antennas to the flanks of their RFID tags, our patent protected process allows us to manufacture the antenna directly onto our the surface of our RFID tags.



Our Micros G2 Tag has virtually no limitations to its use. Because of its size, the Micros G2 Tag is the preferred choice in markets that demand a high degree of security, authenticity, accountability of miniaturized parts and serialization.



Utilizing our Micros G2 Tag is the most efficient way of reducing and controlling costs associated with changes that may occur while utilizing Bar/QR Code alternatives. The ability to continually delete or add data on the Micros G2 Tag gives extreme flexibility to continual changes. It is also the preferred choice in electronics where size of conventional RFID tags may be hampered due to location and desired placement.

OnChip's Micros G2 Tag is so incredibly small, it is difficult to detect with the human eye. Perfect for covert applications.

OnChip's Micros G2 Tag is so incredibly small, it is difficult to detect with the human eye. Perfect for covert applications.

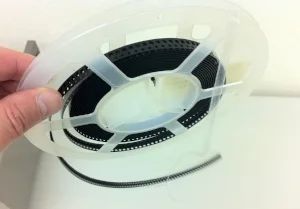

Implementation of OCA's is preformed through "Reel to Reel" application.

Implementation of OCA's is preformed through "Reel to Reel" application.

All OnChip tags are compatible with RAIN:  http://rainrfid.org/about-rain/what-is-rain/



Genesis XL Tag Specifications:

101386- Genesis XL Tag (UHF)

Size: 0.41mm x 0.43mm x 0.09mm *

Support Protocol: OCA,  EPC Class 1 UCODEG2XMUHF ISO 18000-63

Operating Frequency: 840MHz-960MHz (UHF).

* Not yet available for MP.

Micros G2 Tag Specifications:

102779 - Micros G2 Tag (UHF)

Size: 0.41mm x 0.43mm x 0.125mm

Support Protocol: OCA,  EPC Class 1 UCODEG2XMUHF ISO 18000-63

Operating Frequency: 840MHz-960MHz (UHF).

102779 - Micros G2 Tag (UHF) is also available in an adhesive substrate for spraying onto a metal surface at 15~18psi.

Antenna's:

  • 001-Micros Antenna (externalized). Dental antenna(read range: contact).

  • 003-Micros Spot Antenna (externalized). Near field (read range: 0mm to 3mm).

  • 004-Micros Stripe Antenna (externalized) 2-18cm long. Near field (read range: 0mm to 3mm).

Reader's

  • Mobile Reader (general specifications): R/W EP Global UHF Class 1 Gen2 Reader for Android powered handsets and tablets. USB version. Additional information on purchasing will be supplied upon request.

  • Stationary Reader: UHF RFID - Internet Ready

To see what OnChip can do for your business, contact us.
